Вал 2-1/8 Kinze, GD10531

Описание товара

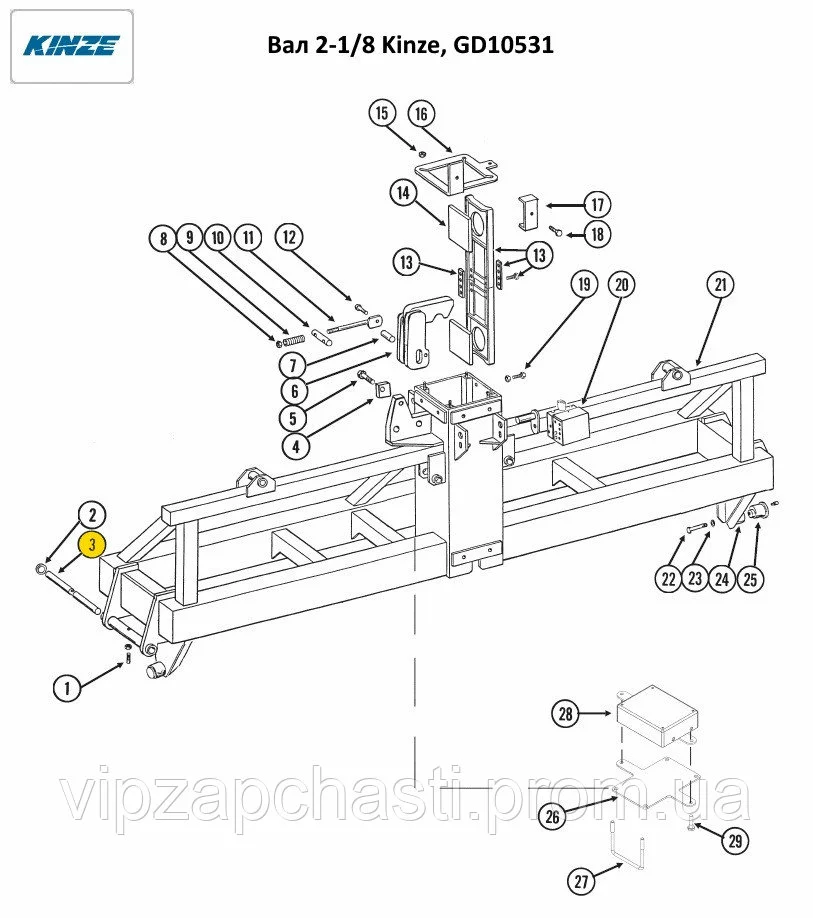

Вал 2-1/8 Kinze, GD10531

1.- G10102 - 1 - Hex Nut, ½"-13
     G10828 - 1 - Hex Socket Set Screw, ½"-13 x 1 ¼"
2.- G10404 - Machine Bushing, 3 ⅛" x 2 ⅛" x 3∕16" (As Required)
     G10234 - Machine Bushing, 2 ⅛", 10 Gauge (As Required)
     G10336 - Machine Bushing, 2 ⅛", 14 Gauge (As Required)
3.- GD10531 - 1 - Hinge Pin, 2 ⅛" x 25 ¾"
4.- GD10492 - 2 - Adjustment Block
5.- G10085 - Hex Head Cap Screw, ¾"-10 x 3 ¾"
     G10218 - Washer, ¾" USS
     G10112 - Lock Nut, ¾"-10
6.- GA7390 - Safety Hook
7.- GD9898 - 1 - Pin, 1 ¼" x 2 15∕16"
8.- G10205 - 2 - Washer, ⅝" SAE
     G10107 - 2 - Lock Nut, ⅝"-11
9.- GD10006 - 2 - Spring
10.- GD9870 - 1 - Pin, 1 ¼" x 6"
11.- GA6943 - 2 - Spring Rod
12.- G10037 - 2 - Hex Head Cap Screw, ½"-13 x 1 ¼"
       G10206 - 2 - Washer, ½" SAE
       G10228 - 2 - Lock Washer, ½"
       GD7904-02 - 2 - Sleeve, ½" x ½" Long
13.- GA7579 - 4 - Pad Holder W/Bars
       GD10706 - Bar, 1 ¼" x 6" x ¼" Thick
       GD10707 - Bar, 1 ¼" x 6" x ⅜" Thick
       G10001 - Hex Head Cap Screw, ⅜"-16 x 1"
14.- GD10053 - 8 - Wear Pad, 7" x 7", ½" Thick
15.- GD7805 - 4 - Special Washer, ⅝", Hardened
        G10104 - 4 - Hex Nut, ⅝"-11
16.- GD9968 - 1 - Cap
17.- GD8188 - 1 - Hose Clamp, ⅞" x 3" x 5 ⅜"
GD8189 - 1 - Rubber Pad
18.- G10053 - 1 - Hex Head Cap Screw, ½"-13 x 2 ½"
       G10228 - 1 - Lock Washer, ½"
       G10102 - 1 - Hex Nut, ½"-13
19.- G10543 - 16 - Hex Head Cap Screw, ¾"-10 x 3", Full Thread
       G10105 - 16 Hex Nut, ¾"-10
20. - See “Valve Blocks - Located On R.H. Rear Center Frame”, Page P105
21.- A7393 - Frame W/Cam Follower Mounts, 136" (Non-Stock Item)
        GA6929 - Cam Follower Mount, L.H.
        GA6928 - Cam Follower Mount, R.H.
22.- G10025 - 2 - Hex Head Cap Screw, ¾"-10 x 1 ½"
23.- GB0409 - 2 - Spring Washer
24.- GD10532 2 - Sleeve
25.- GA6497 - 2 - Cam Follower W/Grease Fitting
        G10640 - Grease Fitting, ¼"-28
26.- GD18344 - 1 - Valve Box Mount (If Applicable)
27.- GD18329 - 2 - U-Bolt, 5∕16"-18 (If Applicable)
        G10106 - 4 - Hex Nut, 5∕16"-18 (If Applicable)
        G10232 - 4 - Lock Washer, 5∕16" (If Applicable)
28.- See “Valve Box Module”, Pages P116 and P117 (If Applicable)
29.- G10064 - 2 - Hex Head Cap Screw, ¼"-20 x 1" (If Applicable)
       G10227 - 2 - Lock Washer, ¼" (If Applicable)
       GD7363-01 - 2 - Sleeve, ½" Long (If Applicable)
       G10103 - 2 - Hex Nut, ¼"-20 (If Applicable)
