Транспортер элеватора зернового CASE 5088, 87365387

Описание товара

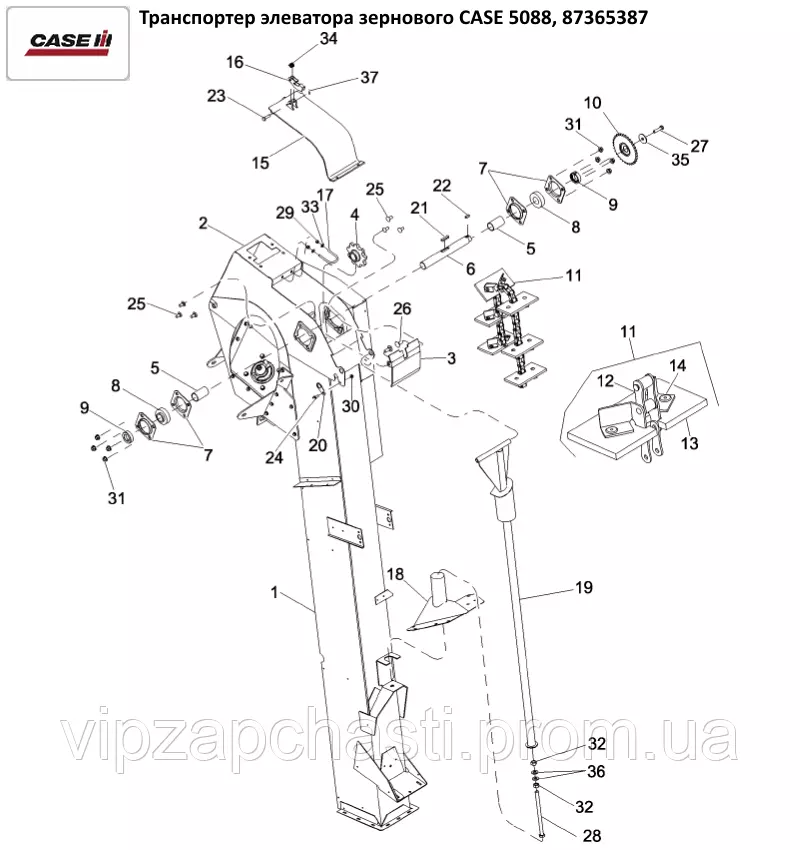

Транспортер элеватора зернового CASE 5088, 87365387

1 NSS 1 NOT SERVICED SEPARATELY, ELEVATOR, Clean Grain, Standard, Without Bubbler, See Figure
09D-04
1 NSS 1 NOT SERVICED SEPARATELY, ELEVATOR, Clean Grain, Extended Wear, Without Auger, See
Figure 09D-06
2 84128959 1 FRAME, Elevator Head
3 84164023 1 DIVIDER, Elevator Head
4 87324981 1 SPROCKET, Auger, Clean Grain Elevator
5 87337958 2 SPACER, Elevator Head Shaft
6 87384187 1 SHAFT, Elevator Head
7 1307583C1 4 FLANGE, 80 mm, 4 Bolt
8 52443 2 BEARING, BALL, Auger Shaft
9 87313329 2 COLLAR,
10 87394289 1 SPROCKET ASSY., Elevator Head Driven
11 87365387 1 CONVEYOR ASSY., Grain Elevator, Inc. 12 - 14
12 87362143 1 CHAIN (AGRICULTURE), Elevator Conveyor
13 1318493C2 38 FLIGHT, RUBBER, Grain Elevator Conveyor
14 185053C1 76 RIVET, Grain Elevator Conveyor
15 87727685 1 DOOR ASSY., Elevator Head Access
16 86581559 1 HANDLE,
17 84989315 1 U-BOLT, M8,
18 84130477 1 TRAP DOOR, Lower Elevator
19 84129021 1 ASSEMBLY, Elevator Head Adjust
20 84134664 1 BRACKET, Compression Column Lock
21 170056 1 KEY, M12 x 8 x 50, Par,
22 368317 1 KEY,
23 9507095 1 PIN, CLEVIS, M10 x 40,
24 87656137 1 BOLT, Hex Flg, M8 x 20, 10.9, Full Thd,
25 374895 6 BOLT, CARRIAGE, Short NK, M12 x 25, Cl8.8, Full Thd,
26 328754 2 BOLT, CARRIAGE, Short NK, M12 x 40, Cl8.8, Full Thd,
27 337476 1 BOLT, Hex, M12 x 50, 10.9,
28 389034 1 BOLT, Hex, M16 x 251, 8.8, Full Thd,
29 86629542 2 NUT, LOCK, M8 x 1.25, Cl 8,
30 86507066 1 NUT, M8 x 1.25, Flg, Cl 10,
31 86512497 8 NUT, M12 x 1.75, Flg, Cl 10,
32 100020 2 NUT, M16, Cl 8,
33 322358 2 WASHER, SPRING, Belleville, M8,
34 86624176 7 WASHER, M10 x 20 x 2,
35 496-81018 1 WASHER,
36 140048 2 WASHER, SPRING, Belleville, M16,
37 280251 1 PIN, SPLIT (COTTER), 3/32" x 1",

1 REF 1 INSTRUCTION, ELEVATOR, Clean Grain, Extended Wear, Without Auger, See Figure 09D-03
2 84128959 1 FRAME, Elevator Head
3 84164023 1 DIVIDER, Elevator Head
4 87324981 1 SPROCKET, Auger, Clean Grain, Elevator
5 87337958 2 SPACER, Elevator Head Shaft
6 87384187 1 SHAFT, Elevator Head
7 1307583C1 4 FLANGE, 80 mm, 4 Bolt
8 52443 2 BEARING, BALL, Auger Shaft
9 87313329 2 COLLAR,
10 87394289 1 SPROCKET ASSY., Elevator Head Driven
11 87365387 1 CONVEYOR ASSY., Grain Elevator
12 87727685 1 DOOR ASSY., Elevator Head Access
13 86581559 1 HANDLE,
14 84989315 1 U-BOLT, M8,
15 84130477 1 TRAP DOOR, Lower Elevator
16 84129021 1 ASSEMBLY, Elevator Head Adjustment
17 NSS 1 NOT SERVICED SEPARATELY, SUPPORT, Compression Column Lock
18 170056 1 KEY, M12 x 8 x 50, Par,
19 368317 1 KEY,
20 9507095 1 PIN, CLEVIS, M10 x 40,
21 87656137 1 BOLT, Hex Flg, M8 x 20, 10.9, Full Thd,
22 374895 6 BOLT, CARRIAGE, Short NK, M12 x 25, Cl8.8, Full Thd,
23 328754 2 BOLT, CARRIAGE, Short NK, M12 x 40, Cl8.8, Full Thd,
24 337476 1 BOLT, Hex, M12 x 50, 10.9,
25 389034 1 BOLT, Hex, M16 x 251, 8.8, Full Thd,
26 86629542 2 NUT, LOCK, M8 x 1.25, Cl 8,
27 86507066 1 NUT, M8 x 1.25, Flg, Cl 10,
28 86512497 8 NUT, M12 x 1.75, Flg, Cl 10,
29 100020 2 NUT, M16, Cl 8,
30 322358 2 WASHER, SPRING, Belleville, M8,
31 86624176 7 WASHER, M10 x 20 x 2,
32 496-81018 1 WASHER,
33 140048 2 WASHER, SPRING, Belleville, M16,
34 280251 1 PIN, SPLIT (COTTER), 3/32" x 1",
