Шплинт пальца шнека New Holland, 740591

Описание товара

Шплінт пальця шнека New Holland, 740591

 H169913, LA80740591, 6656660, G169913, 80740591

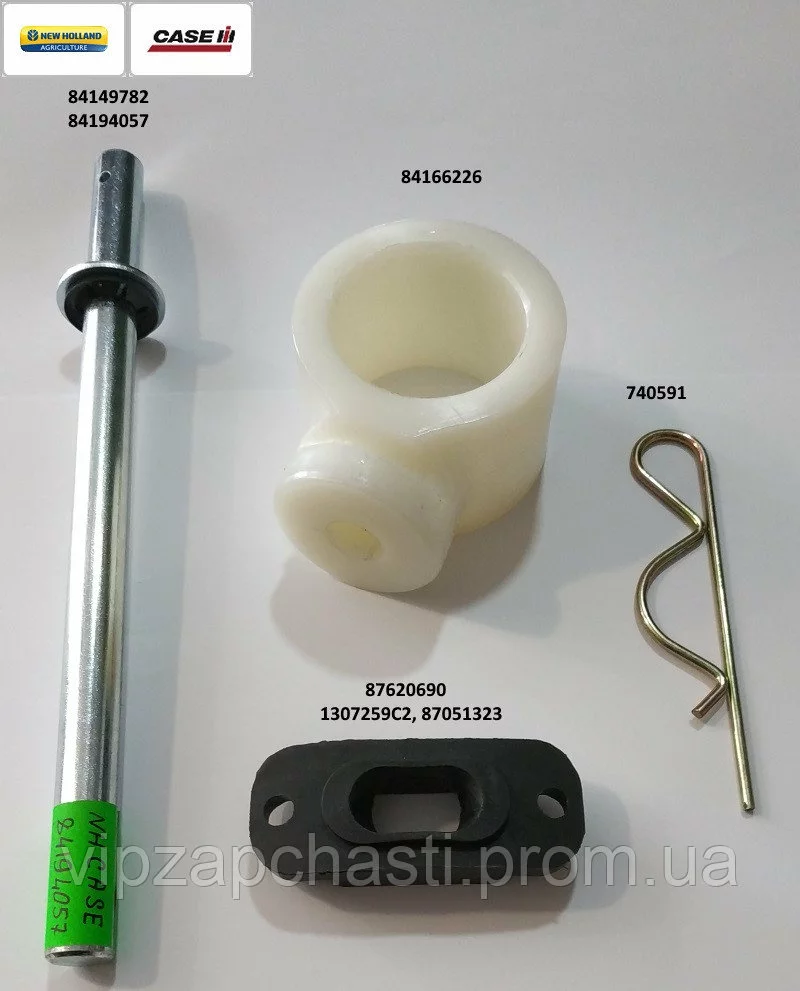

87051301 - палець  / 86632613 - вічко / 740844 - тримач пальця / 740591 - шплінт
палець - 84194057 / вічко - 8762690 / 84362468 - тримач пальця / 740591 - скоба

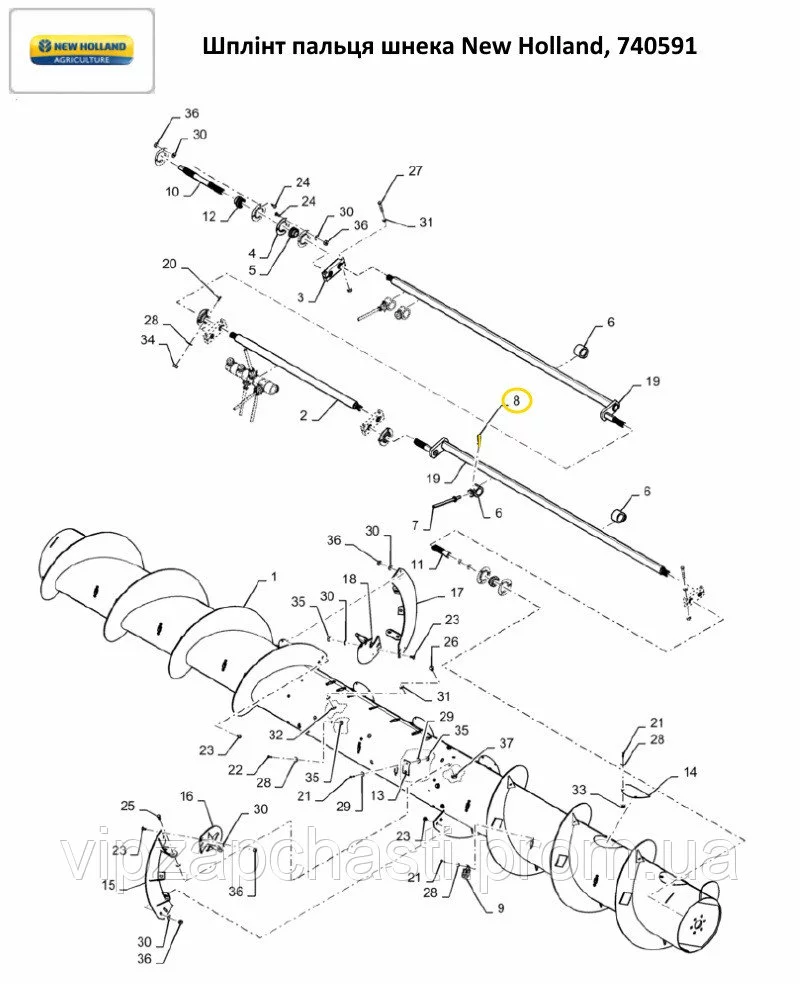

1 – 84244832 – AUGER – Tube Only – 1

2 – 84261948 – SHAFT – 1

3 – 86620720 – CRANKED LINK – 6

4 – 36403 – BEARING HOUSING – 14

5 – 87323339 – BALL BEARING,35mm ID x 72mm OD x 19mm W – 6

6 – 84166226 – COUPLING JOINT – 52

7 – 84149782 - FINGER ASSY. – 38

8 – 740591 – COTTER PIN,M10 x 67 – 38

9 – 87620690 – GUIDE,Auger Finger – 38

10 – 84261952 – SHAFT – 1

11 – 87392469 – SHAFT – LH – 1

12 – 84814912 – BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm – 1

13 – 87471091 – COVER – 6

14 – 86603219 – ACCESS COVER – Protection – 14

15 – 84224158 – AUGER FLIGHT – LH – 1

16 – 84263898 – AUGER FLIGHT – LH – 1

17 – 84224161 – AUGER FLIGHT – RH – 1

18 – 84263895 – AUGER FLIGHT – RH – 1

19 – 84264237 – SHAFT – 4

20 – 84262759 – SET SCREW,M6 x 0.75 x 16mm – 6

21 – 120100 – BOLT,M6 x 20mm, Cl 8.8 – 116

22 – 86619060 – CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8 – 6

23 – 338949 – CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8 – 8

24 – 86512446 - CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8 – 6

25 – 300388 – BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8 – 14

26 – 374895 - CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8 – 12

27 – 43158 – BOLT,Hex, M12 x 80mm, Cl 8.8 – 12

28 – 322357 – BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk – 110

29 – 86624182 – WASHER,6.6mm ID x 18mm OD x 1.6mm Thk – 24

30 – 140045 – BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk – 29

31 – 140046 – BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk – 52

32 – 84315756 – NUT – 76

33 – 86014250 – SPRING NUT,M6 x 1.0 – 28

34 – 84268307 – NUT,M6 x 0.75, 8 ZND – 6

35 – 353308 - NUT,Hex, M6 x 1 – 12

36 – 100016 – NUT,M10 x 1.5, Cl 8 – 29

37 – 87533547 - NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10 – 26

38 – 322358 – BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk – 6

39 – 9706690 – NUT,M8 x 1.25, Cl 8 – 6
