Кран регулятора давления ARAG, 471202

Описание товара

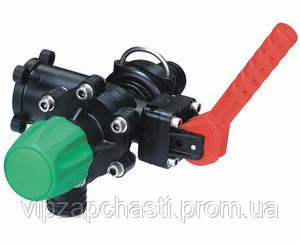

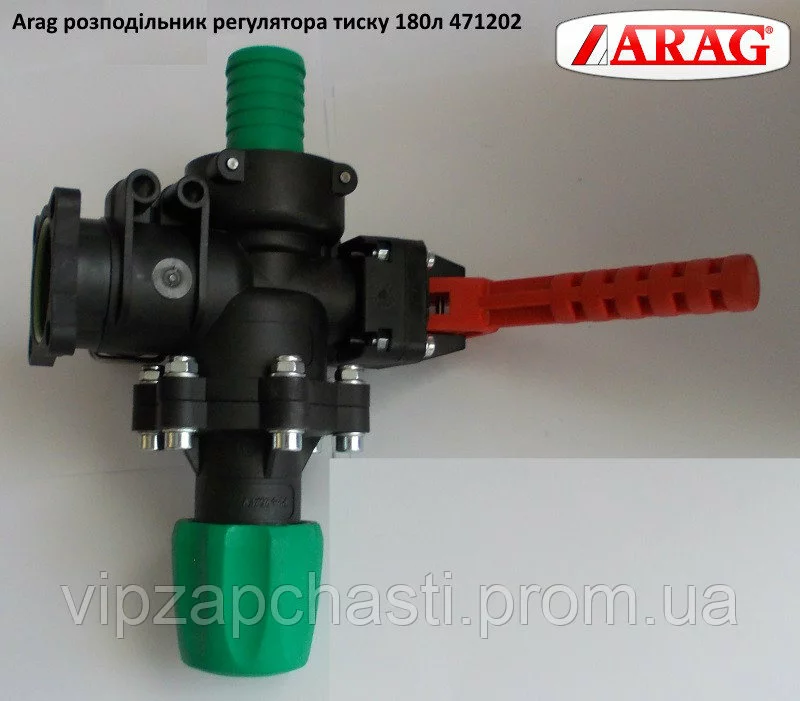

Кран регулятора давления на опрыскиватель ARAG 471202



Комплектующие крана регулятора давления ARAG

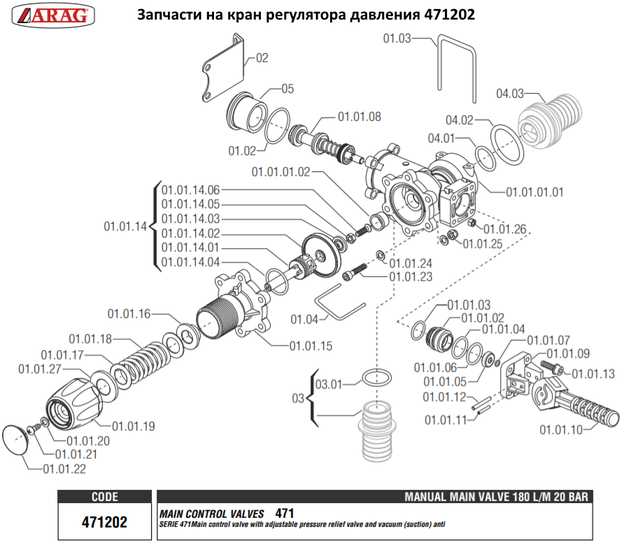

Запчасти на кран регулятора давления

01.01.01.01 471502.010 VALVE CONTROL BODY 180 L

01.01.01.02 471202.012 INOX BUSH X MAXIMUM PRESS.VALVE 471

01.01.02 471202.011 HOLDING BUSH FOR VALVE 471

01.01.03 004500.070V OR 2,62X17,86 VITON

01.01.04 465005.140V GASKET (OR) 22,2X2,62 * VITON

01.01.05 465900.180 GASKET 4X18,7X6,6 VITON

01.01.06 465900.060 OR 1,78X18,77 70SHORE VITON

01.01.07 G11019V OR 1,78X6,07 VITON

01.01.08.24 B202F1 FLAT WASHER 6,3X9,5X1 INOX

01.01.09 461202.020 BLANK ADAPTOR MANUAL MAIN VALVE

01.01.10 461202.010 MANUAL MAIN VALVE LEVER

01.01.11 B4313H SPIRAL ELASTIC PIN 3X20

01.01.12 461202.090 PIN 4X32 * INOX

01.01.13 V1Q13I SCREW TCEI FL 5X20 ZNB

01.01.14 471502.180 PRESS.REG.DIAPHRAM AND BAR KIT 471

01.01.14.01 471502.100 471 MAX.PRESSURE VALVE PLUNGER

01.01.14.02 465005.090 DIAPHRAGM D. 55

01.01.14.03 465005.080 PRESSURE REGULATION VALVE PLUNGER

01.01.14.04 G10041V OR 2,62X20,24 VITON

01.01.14.05 B10241 NUT M 6X10X5 UNI5588 * INOX

01.01.14.06 V1F24H SCREW TSPEI 6X18 INOX UNI5933

01.01.15 471502.110 REGULATION SUPPORT PRESS.VALVE 471

01.01.16 471502.130 SPRING SUPPORT MAX.PRES.V.VE V.471

01.01.17 471502.135 SPACER D.20X30X1

01.01.18 471502.120 SPRING DE 31.0X 66.7 F=4.0 FE+DCR

01.01.19 471502.170 GREEN PRESSURE REGISTER KNOB 471

01.01.20 B202F0 FLAT WASHER 6,4X12,5X1,6 INOX

01.01.21 V2B26G SELF THREAD.SCREW 5,5X19 * INOX

01.01.22 4542237.057 LEVER PLUG 2" GREEN

01.01.23 V1C14K SCREW TCEI M 6 X 25 UNI 5931

01.01.24 B201F0 FL. WASHER 6,4X12,5X1,6 ZNB UNI6592

01.01.25 B12141 SELF-LOCKING NUT M6 FE-ZN UNI7474

01.01.26 B10132 NUT M 5X8X5 ZNB UNI5587

01.02 G10071V OR 2,62X39,34 VITON

01.03 010005 FORK D.3 DIST.42

01.04 010003 FORK D.3 DIST.29

02 463011.100 VALVE PLATE FOR VALVES 463

03 473001.A25 HOSETAIL D.25 FOR VALVE 473 + OR

     473001.A19 HOSETAIL D.19 FOR VALVE 473 + OR

     473001.A30 HOSETAIL D.30 FOR VALVE 473 + OR

     473001.A32 HOSETAIL D.32 FOR VALVE 473 + OR

     473001.B30 THREADED HOSETAIL 3/4"M VALV.473+OR

     473001.B40 THREADED HOSETAIL 1"M X 473 + OR

     473001.B50 THREADED HOSETAIL 1"1/4M X 473 + OR

     473001.B45N THREAD.HOSETAIL 1"F NPT X 473 + OR

     473001.C25 BENT HOSE PTG D.25 X VALVE473 W/OR

03.01 G11058V OR 2,62X25,07 VITON

04 471202.A41 HOSETAIL D.30 D.16 471 S.B. + OR

     471202.A40 HOSETAIL D.25 D.12 471 S.B. + OR

     471202.A43 HOSETAIL D.32 D.16 471 S.B. + OR

     471202.A45 HOSETAIL D.35 D.19 471 S.B. + OR

     471202.A25 HOSETAIL D.25 BY-PASS 471 + OR

     471202.A30 HOSETAIL D.30 BY-PASS 471 + OR

     471202.A32 HOSETAIL D.32 BY-PASS 471 + OR

     471202.A35 HOSETAIL D.35 BY-PASS 471 + OR

     471202.B50 THREADED HOSETAIL 1"1/4 M 471 + OR

     471202.B51 THREAD.HOSETAIL 1"1/4 D.19 S.B.+OR

     471202.B52 THREAD.HOSETAIL 1"1/4 D.16 S.B.+OR

     471202.C25 90° HOSETAIL D.25 BY-PASS 471 + OR

     471202.C30 90° HOSETAIL D.30 BY-PASS 471 + OR

04.01 G10051V OR 2,62X26,65 VITON

04.02 460000.210V OR 2,62X42,52 VITON

05 471202.029 MALE FLANGE X VALVE HOSE 471/463
