Елеватор зерновий Massey Ferguson 9690 71393534

Описание товара

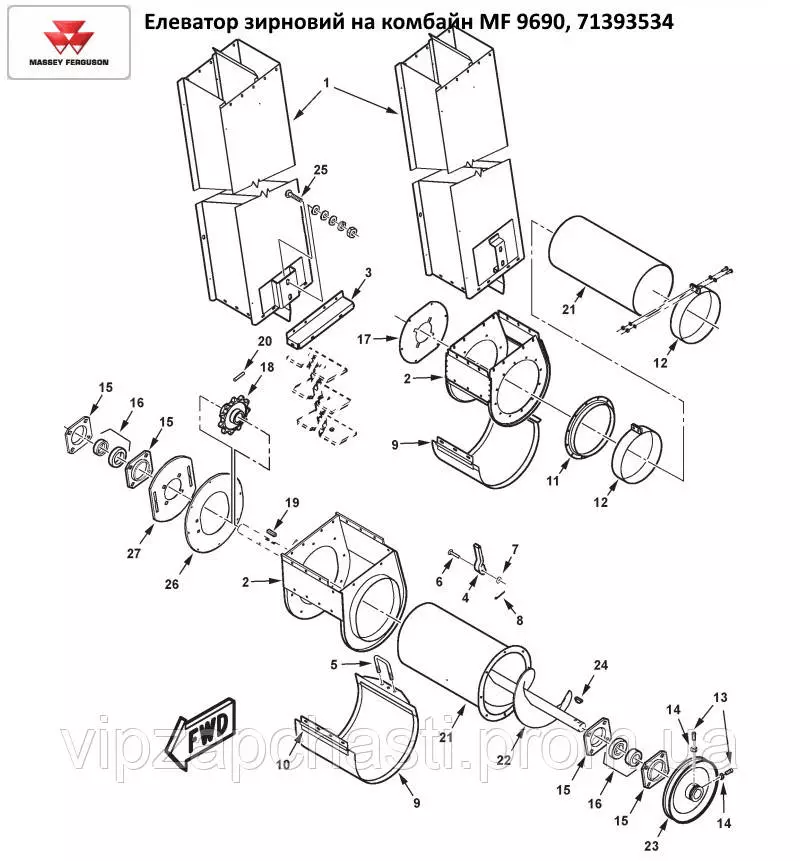

Елеватор зирновий на комбайн Massey Ferguson 9690, 71393534 (транспортер зерновий, ланцюг елеватора зернового)

1 71393547 1 BODY & DECALS, ASY (PRIOR S/N HP87101) (DECALS- SEE "LABELS" SECTION)
   71400435 1 BODY WLMT, GR ELEV. (EFF. S/N HP87101)
   71409271 1 BODY WLMT,GR ELEV.RICE (EFF.S/N HP87101)
   71396458 1 BODY & DECALS ASY (EUROPE)
   70931316 10 BOLT, RD HD SQ NECK 1/4-20 X 5/8
   705012 10 LOCKWASHER, 1/4 (PRIOR S/N HP87101)
   70917377 10 WASHER, 1/4, WIDE(PRIOR S/N HP87101)
   70916622 10 NUT, 1/4-20, REG (PRIOR S/N HP87101)
   70931209 10 LOCKNUT, HEX SERR FLANGE, 1/4-20 (EFF. S/N HP87101)
2 71393429 1 BOOT ASY. GR ELEV. (PRIOR S/N HP87101)
   71399994 1 BOOT WLMT, GR ELEV. (EFF. S/N HP87101)
   71409268 1 BOOT WLMT,GR ELEV. RICE(EFF S/N HP87101)
   70931316 14 BOLT, RD HD SQ NECK, 1/4-20 X 5/8
   705012 14 LOCKWASHER, 1/4
   70917377 14 WASHER, 1/4 WIDE (PRIOR S/N HP87101)
   70916622 14 NUT, 1/4-20, REG
3 71399807 1 FILLER WLMT, GR ELEV. (EFF. S/N HP87101)
   71409269 1 FILLER WLMT, GR ELEV. RICE (S/N HP87101)
   70931316 4 BOLT, RD HD SHT SQ NK, 1/4-20 X 5/8
   70931317 4 BOLT, RD HD SHT SQ NK, 1/4-20 X 3/4
   705012 8 LOCKWASHER, 1/4
   70916622 8 NUT, 1/4-20, REG
4 1799410W1 1 LATCH, DOOR
5 71197376 1 U-BOLT, LATCH (PRIOR S/N HP87101)
   70916622 4 NUT, 1/4-20, REG (PRIOR S/N HP87101)
   2476240W1 1 LATCH BOLT, DOOR (EFF. S/N HP87101)
   70916950 4 NUT, 3/8-16 (EFF. S/N HP87101)
6 70927523 1 PIN, CLEVIS, 5/16 X 1-1/2
7 70918265 1 WASHER, WIDE FLAT, 5/16
8 70918447 1 PIN, COTTER, 3/32 X 3/4
9 71393526 1 DOOR WLMT, LOWER (PRIOR S/N HP87101)
   71396467 - DOOR WLMT, PERFORATED (ACCESSORY)(PRIOR S/N HP87101)
   71400431 1 DOOR WLMT, LOWER (EFF. S/N HP87101)
   71410456 1 * DOOR WLMT,PERFORATED(EFF. S/N HP87101)
   71409265 1 DOOR WLMT, LOWER, RICE (EFF.S/N HP87101)
   70931317 4 BOLT, RD HD,SHT SQ NK, 1/4-20 X 3/4
   353769X1 4 WASHER, HARDENED, 1/4
   705012 4 LOCKWASHER, 1/4
   70916622 4 NUT, 1/4-20, REG
10 2412670W1 1 HINGE, DOOR (PRIOR S/N HP87101)
     71400432 1 HINGE, DOOR (EFF. S/N HP87101)
11 2554680W1 1 FLANGE, ELEVATOR (PRIOR S/N HP87101)
     70931316 12 BOLT, RD HD SQ NECK, 1/4-20 X 5/8
     70916964 12 LOCKWASHER, 1/4
     70916622 12 NUT, 1/4-20, REG
12 2555401W91 2 CLAMP ASY, TUBE (PRIOR S/N HP87101)
     700705614 4 CAPSCREW, 5/16-18 X 1-1/2 FULL THD
     70917642 4 WASHER, 5/16, WIDE
     70917356 4 LOCKWASHER, 5/16
     70917372 4 NUT, 5/16-18, REG
13 70923326 1 SETSCREW,SQ HD, 3/8-16 X 1 (QTY 2, PRIOR S/N HP87101)
     70920469 1 SETSCREW, SQ HD CUP PT, 3/8-16 X 3/4 (EFF. S/N HP87101)
14 70916950 2 NUT, 3/8-16, REG (PRIOR S/N HP87101)
15 17789 4 FLANGE, BEARING
     70931809 8 BOLT, RND HD SQ NK, 1/2-13 X 1-1/4 (WAS QTY 7, PRIOR S/N HP87101)
     70931810 1 BOLT, RND HD SQ NK, 1/2-13 X 1-3/4 (PRIOR S/N HP87101)
     Y705046 8 LOCKWASHER, 1/2
     704031 8 NUT, 1/2-13, REG
16 50468 2 BEARING, BALL, W/COLLAR
     1720176 2 COLLAR
17 2571520W1 1 PLATE, BEARING MOUNT (PRIOR S/N HP87101)
     70931316 6 BOLT, RD HD SQ NECK, 1/4-20 X 5/8
     70916964 6 LOCKWASHER, 1/4
     70916622 6 NUT, 1/4-20, REG
18 2571510W1 1 SPROCKET, GRAIN ELEVATOR
19 61101 1 SQ. KEY, 1/4 X 1/4 X 1-3/4
20 70926977 1 PIN, COILED SPRING, 3/16 X 2-1/4
21 71393546 1 TUBE, BOTTOM,GR ELEV.(PRIOR S/N HP87101)
     71406260 1 TUBE WLMT,BTM,GR ELEV.(EFF. S/N HP87101)
     71409381 1 TUBE, BTM,GR ELEV. RICE(EFF.S/N HP87101)
     7700461 8 BOLT, RD HD SQ NK, 5/16-18 X 3/4
     70917356 8 LOCKWASHER, 5/16
     70917372 8 NUT, 5/16-18, REG
     70933988 8 SPEED NUT, THREAD GRIP, 5/16
22 71392700 1 AUGER ASY, (PRIOR S/N HP87101)
     71394534 1 AUGER ASY (CHROME)
23 108843W1 1 PULLEY, DRIVEN (PRIOR S/N HP87101)
     71403682 1 PULLEY, DRIVEN (EFF. S/N HP87101)
24 70911201 1 KEY, WOODRUFF, 3/8 X 1-1/4 DIA
25 701235 1 CPSCR, 1/2-13 X 1-1/2 (WAS QTY.2 PRIOR S/N HP87101)
     70921176 1 CPSCR, 1/2-13 X 1-1/4 (EFF. S/N HP87101)
     70931187 1 NUT, HEX SERR FLANGE, 1/2-13
     70936525 1 SPEED NUT, THREAD GRIP, 1/2
     705541 2 WASHER, HARD, 1/2 (WAS QTY.4)
     Y705046 1 LOCKWASHER, 1/2 (WAS QTY.2)
     704031 1 NUT, 1/2-13, REG (WAS QTY.2)
26 71400429 1 PLATE, BOOT COVER (EFF. S/N HP87101)
     71409267 1 PLATE, BOOT COVER, RICE(EFF.S/N HP87101)
     70931317 8 BOLT, RD HD SQ NK, 1/4-20 X 3/4
     705012 8 LOCKWASHER, 1/4
     70916622 8 NUT, 1/4-20, REG
27 71400430 1 PLATE, BRG (EFF. S/N HP87101)
     71409266 1 PLATE, BRG, RICE (EFF. S/N HP87101)
     70931350 4 BOLT, RD HD SQ NK, 3/8-16 X 1 GR5
     Y705533 4 WASHER, HARD, 3/8
     70916965 4 LOCKWASHER, 3/8
     70916950 4 NUT, 3/8-16, REG
   - 71393534 1 CHAIN ASY. (NOT ILL)(SEE CHAINS, DRIVE)
   - 700704010 AR SILICONE SEALANT, BLACK, 10.2 OZ
   - 71407047 AR * KIT,PERF. ELEV DOORS(EFF. S/N HP87101)
     (ORDER THRU DEALER CENTRAL)

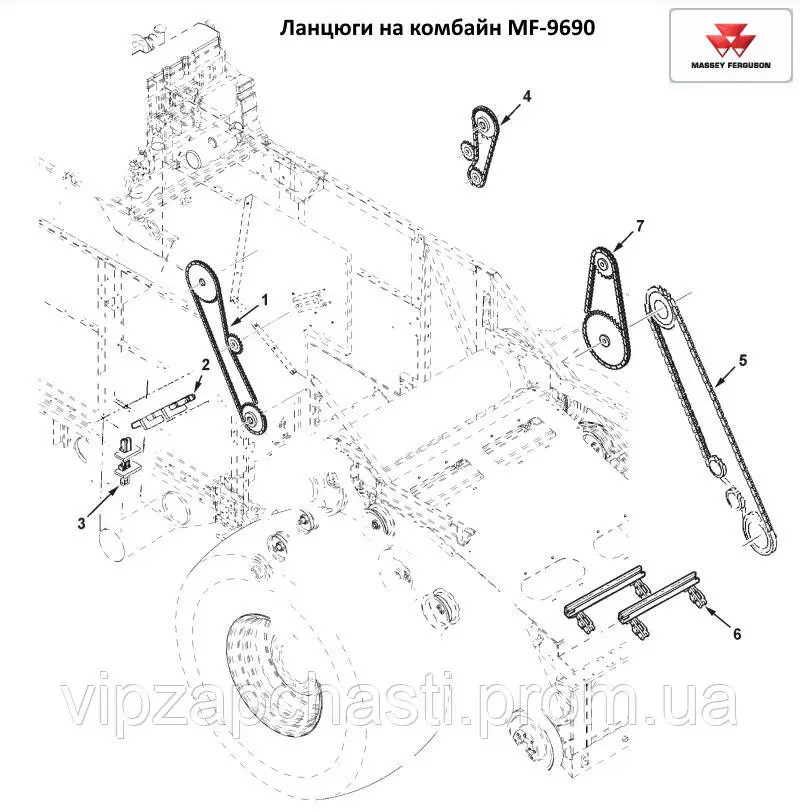

1 Y851774 1 CHAIN ASY, BIN FILL, #50, 101 PITCHES,
            (PLUS 1 CONNECTR)(PRIOR S/N HN87101)
    ----- 1 CHAIN #50, 109 PITCHES (USE 107 LINKS OF
            BULK CHAIN, PLUS 1 CONNECTOR #50 &
          1 OFFSET LINK #50 (EFF. S/N HN87101)
  840327M91 1 CHAIN #50, 5/8 PITCH, BULK (10 FT)
  70913682 1 LINK, CONNECTOR, #50
  70913680 1 LINK, OFFSET, #50
2 2615233W92 1 CHAIN ASY, RETURN ELEV. (119 LINKS) (PRIOR S/N HP87101)
  71406795 1 CHAIN ASY, RETURN ELEV. (118 LINKS)(EFF. S/N HP87101)
  70927035 AR LINK, OFFSET
  70927034 AR LINK, ROLLER
  70927036 AR LINK, CONNECTOR
  2605880W91 29 LINK, ATTACHING, PAIR
  W1511670 29 CUP, FLIGHT
  70921333 58 CAPSCREW, 5/16-18 X 1
  70923362 58 NUT, CENTER LOCK, 5/16-18
  70917642 58 WASHER, 5/16, WIDE
  2635690W1 58 SPACER
3 71393534 1 CHAIN ASY., GRAIN ELEVATOR
  71393533 1 CHAIN ASY, LESS SCRAPERS
  71149388 37 LINK, ATTACHING
  70927034 AR LINK, ROLLER
  70927035 AR LINK, OFFSET
  71364946 37 SCRAPER
  70921960 74 CAPSCREW, 1/4-20 X 1.0
  700709601 74 WASHER, FLAT 1/4
  Y704395 74 LOCKNUT, 1/4-20
4 ---- 1 CHAIN, UNLOADER DR, #60, 70 PITCHES (USE 69 LINKS OF BULK CHAIN AND  CONNECTOR)
  70921050 AR CHAIN, #60, 3/4 PITCH, BULK (10 FT)
  70914584 AR LINK, CONNECTOR, #60
5 71149992 1 CHAIN ASY., FEEDER DRIVE #60 (PRIOR S/N HP87101)
  70914584 AR LINK, CONNECTOR, #60
6 71449007 1 CHAIN ASY, FEEDER CONVEYOR, W/SLATS (PRIOR S/N HP87101)
  71149999 1 CHAIN ASY, CENTER(PRIOR S/N HP87101)
  71449001 2 CHAIN ASY., SIDE (PRIOR S/N HP87101)
  71449018 1 CHAIN ASY, FEEDER CONVEYOR, W/SLATS (EFF. S/N HP87101)
  71449016 1 CHAIN ASY, CENTER (EFF. S/N HP87101)
  71449015 2 CHAIN ASY., SIDE (EFF. S/N HP87101)
  71149894 AR LINK, ATTACHING
  70937300 AR LINK, ROLLER
  71149896 AR LINK, OFFSET, INCL. PIN & LOCKNUT
  71149895 AR LINK, COUPLING
  70920397 AR NUT, NYLON LOCK, 1/4-20
  71395877 28 SLAT, FEEDER CHAIN
  70937603 112 CAPSCREW, LOCKING, 1/2-13 X 3/4 GR8
  70928512 112 NUT, 1/2-13 REG GR8
7 ----- 1 CHAIN ASY, FEEDER REVERSER, #60 (EFF. S/N HP87101)
  71449019 1 CHAIN, #60, 71 PITCHES
  70914584 1 CONNECTOR LINK, #60 CHAIN
